3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

Gambar besar :  3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: RV
Nomor model: RV-P-K2A88-F
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $1,666.70
Kontak

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications

Deskripsi
Bahan: Pp Diafragma: VT
Berat: 66kg Tekanan maksimal: 120psi (0,84mpa, 8.4bar)
kursi bola: Pvdf Aliran Maks: 270gpm (1022lpm)
Tekanan kerja maks: 120 psi (0,84mpa, 8.4bar) Laju aliran maks: 270gpm (1022l/m)
Kecepatan Maksimal: 135 cpm Tinggi hisap maksimal: 5m
Biji-bijian Maksimum yang Diizinkan: 0.37in. (9.4mm) Konsumsi Udara Maks: 180scfm (90l/s)
Ukuran saluran masuk udara: 3/4in Ukuran lubang udara: 1 masuk
Ukuran saluran masuk cairan: 3 Di Ukuran outlet cairan: 3 Di
Menyoroti:

270gpm Max Flow Pneumatic Diaphragm Pump

,

1 Year Warranty AODD Pump

,

Air-Driven Diaphragm Pump

3-Inch Pneumatic Air-Driven Diaphragm Pump VT Ball for Wastewater & Drinking Water Treatment
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270gpm (1022L/M)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37in. (9.4mm)
Max Air Consumption 180scfm (90L/S)
Air Inlet Size 3/4in
Air Outlet Size 1in
Fluid Inlet Size 3in
Fluid Outlet Size 3in
Weight PP pump: 79KGS
Product Images

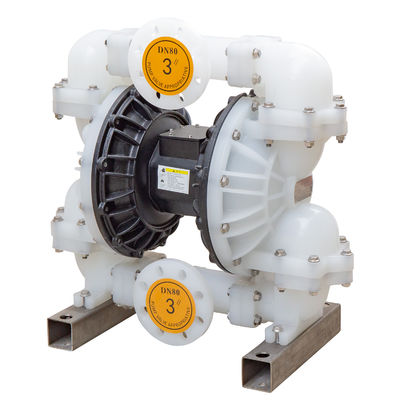

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 0

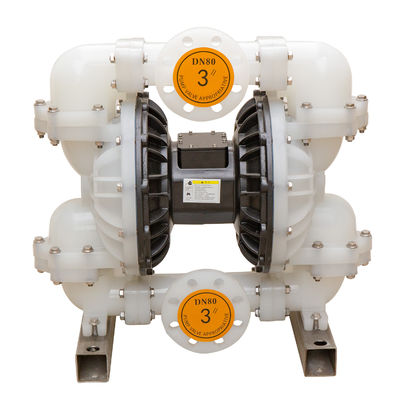

3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 1
Our Advantages
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 2
Packing & Delivery
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 3
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 4
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 5
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 6

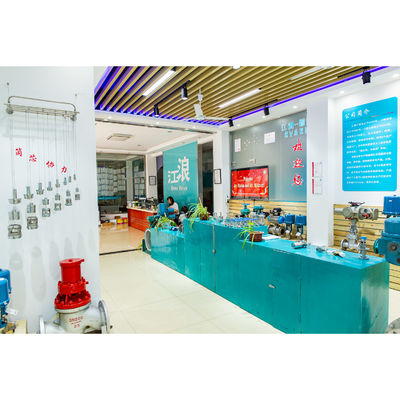

Company Profile
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 7

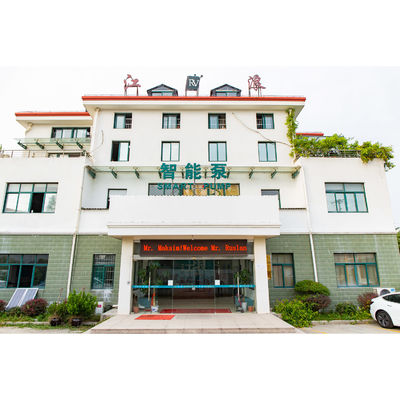

Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
Our product range includes:
  • Pneumatic Diaphragm Pumps
  • Electric Diaphragm Pumps
  • Piston Pumps
  • Powder Pumps
  • Sanitary Pumps
  • Diaphragm Pumps with Leakage Detector Controller
  • Pneumatic Diaphragm Regulating Valves
  • Control Valves
  • Sequencing Valves
Our products hold over 40 patents, including 10 invention patents. We participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017) and hold certifications including TS, CE, ATex, ISO9001, and SGS.
Our Service
3-Inch Air-Driven Pneumatic Diaphragm Pump with 270gpm Max Flow and 1 Year Warranty for Industrial Applications 8
  • All inquiries replied within 24 working hours
  • Professional pump producer with dedicated design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union - please confirm exact payment method with us when ordering.
Q: What is the delivery time?
A: Depends on quantity. Typically 1-7 working days.
Q: What about package?
A: Cartons with foam inside, wooden case, and pallet options available.
Q: How are the products delivered?
A: By international express or sea freight.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
