1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty

1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty
1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty

Gambar besar :  1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: RV
Nomor model: RV-P-72A88-F
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $354
Kontak

1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty

Deskripsi
Tekanan maksimal: 120psi (0,84mpa, 8.4bar) Aliran Maks: 40gpm (150lpm)
Kecepatan bolak -balik: 276cpm Tinggi hisap: 5m
Gandum yang diizinkan: 0,16in. (4mm) Konsumsi Udara: 45 SCFM (22.5L/S)
Inlet Udara: 1/2in Ventilasi udara: 3/4 in
Saluran Masuk Cairan: 1 masuk Outlet cairan: 1IN
Berat Pompa: PP PP: 8.3kgs, PVDF Pompa: 10.8kgs Bahan pompa: Pp
Sumber Daya: Pneumatik Struktur: Pompa diafragma
Bahan bola: VT
Menyoroti:

PP Pneumatic Diaphragm Pump

,

Drinking Water Treatment Diaphragm Pump

,

1 Year Warranty AODD Pump

1" Pneumatic Diaphragm Pump - Air Powered for Efficient Wastewater & Drinking Water Treatment
Product Specifications
Specification Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 40gpm (150L/M)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16in. (4mm)
Max Air Consumption 45 scfm (22.5L/S)
Air Inlet Size 1/2in
Air Outlet Size 3/4in
Fluid Inlet Size 1in
Fluid Outlet Size 1in
Weight PP pump: 8.3KGS, PVDF pump: 10.8KGS
Product Images

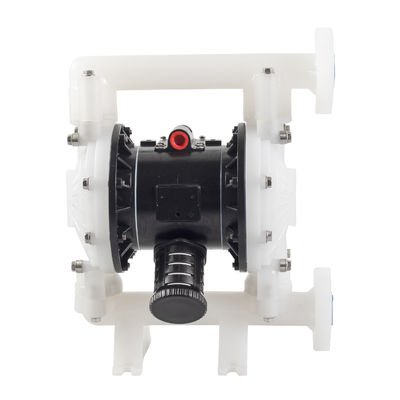

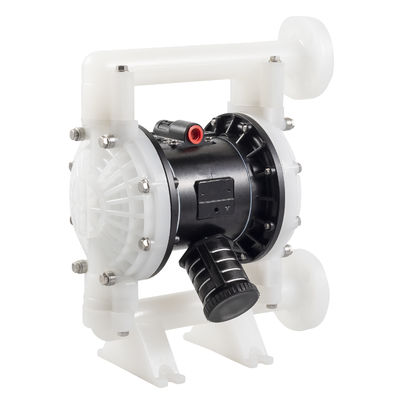

1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 0 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 1
Our Advantages
1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 2
Packing & Delivery
1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 3 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 4 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 5 1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 6

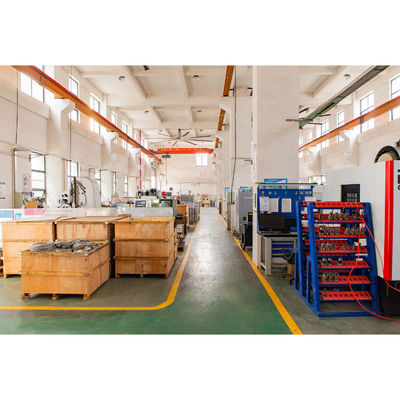

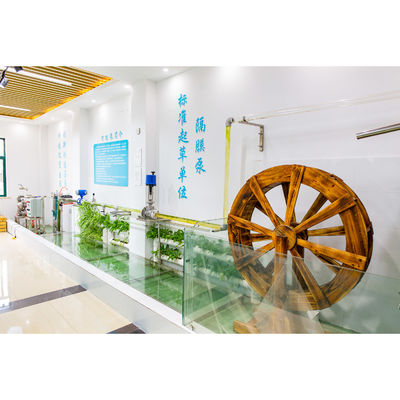

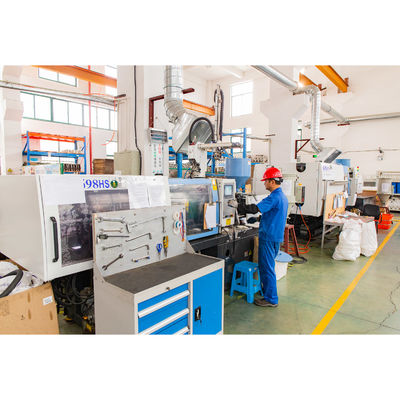

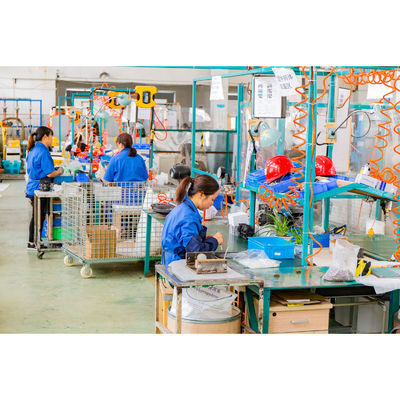

Company Profile
1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 7
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company in consecutive years.
We specialize in diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, and Sequencing Valve.
Our products have been granted more than 40 patents, including 10 invention patents. We participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry (National Standard No.: SH/T 3191-2017).
Our Service
1 Inch PP Pneumatic Diaphragm Pump for Drinking Water Treatment with 1 Year Warranty 8
  • All enquiries replied within 24 working hours
  • Professional pump producer with design team
  • Standard export wooden case packaging (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - please confirm with us for exact order.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about packaging?
A: Cartons with foam inside & wooden case & pallet.
Q: How are products delivered?
A: By international express or sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Can products be made to different standards?
A: Yes, we can produce according to custom requirements.
