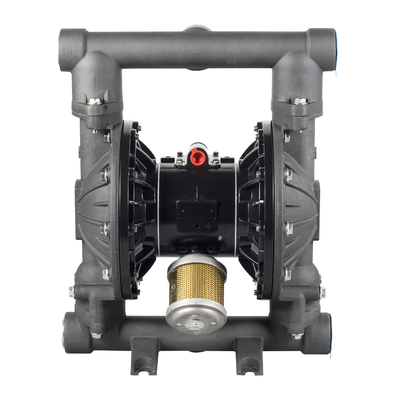

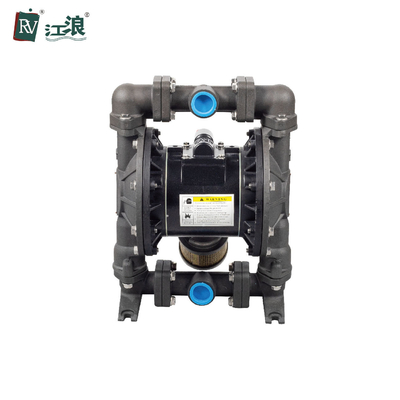

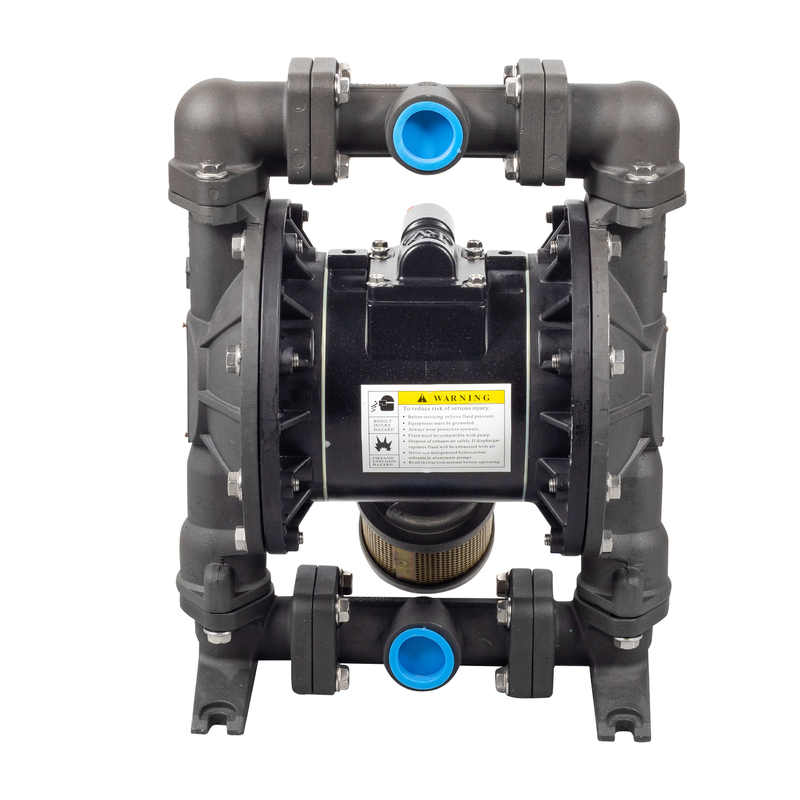

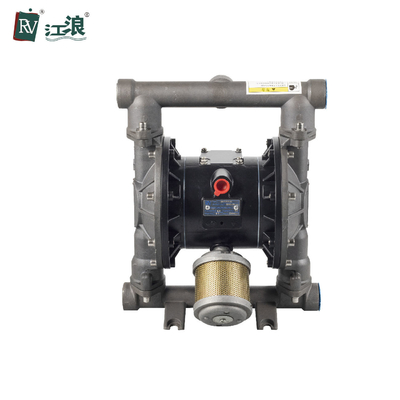

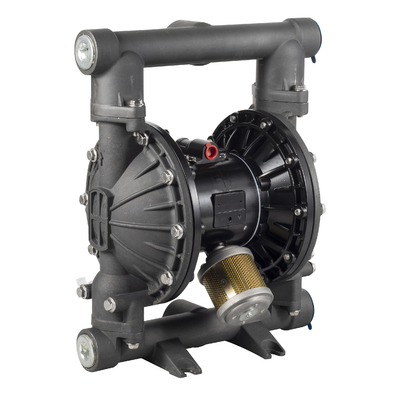

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Gambar besar :  Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: RV
Nomor model: RV-A-73311
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $1,404.10
Kontak

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Deskripsi
Ukuran outlet: 1 inci Bahan: Aluminium
Bahan diafragma: Ptfe Tekanan maksimal: 120psi (0,84mpa, 8.4bar)
Aliran Maks: 90gpm (340pm) Tekanan kerja maks: 120 psi (0,84mpa, 8.4bar)
Laju aliran maks: 90gpm (340lpm) Kecepatan Maksimal: 200cpm
Tinggi hisap maksimal: 5m Biji-bijian Maksimum yang Diizinkan: 0.2in. (5mm)
Konsumsi Udara Maks: 45scfm ((22.5L/s) Ukuran saluran masuk udara: 1/2 in
Ukuran lubang udara: 3/4 in Ukuran saluran masuk cairan: 11/2
Ukuran outlet cairan: 11/2 Berat: 16kg
Menyoroti:

1 inch aluminum diaphragm pump

,

120psi aluminum diaphragm pump

,

high pressure diaphragm pump

Aluminum Diaphragm Pumps - Air-operated Double Diaphragm Pumps
Product Specifications
Attribute Value
Warranty 1 year
Customized Support OEM, ODM
Power Source Pneumatic
Pressure Low Pressure
Structure Diaphragm Pump
Outlet Size 1 inch
Material Aluminum
Diaphragm Material PTFE
Speed 200cpm
Max Pressure 120psi (0.84Mpa, 8.4bar)
Max Flow 90gpm (340pm)
Technical Specifications
Parameter Value
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 90gpm (340lpm)
Max Reciprocating Speed 200cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2in. (5mm)
Max Air Consumption 45scfm (22.5L/S)
Air Inlet Size 1/2 in
Air Outlet Size 3/4 in
Fluid Inlet Size 1 1/2 in
Fluid Outlet Size 1 1/2 in
Weight 16kg (Aluminum pump)
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 0
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 1
Product Advantages
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 2
Packaging & Delivery
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 3
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 4
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 5
Company Profile
Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure 6
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in diaphragm pumps and control valves with over 40 patents, including 10 invention patents.
Our Service
  • All inquiries replied within 24 working hours
  • Professional pump producer with design team
  • Standard export packaging (non-fumigation wooden cases)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment method?
A: D/P, T/T, Western Union - please confirm exact payment terms with us when ordering.
Q: What is the delivery time?
A: Typically 1-7 working days, depending on quantity.
Q: How are products packaged?
A: Cartons with foam inside, wooden cases, or pallets depending on order size.
Q: What is the warranty period?
A: 15 years warranty for air motor, 5 years for pump body.
