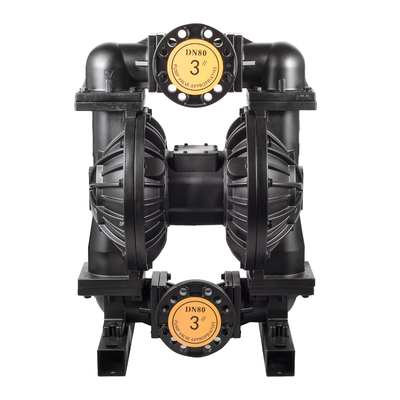

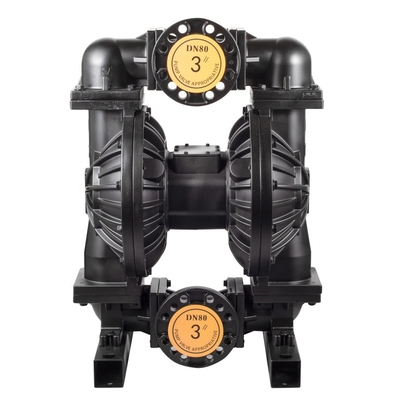

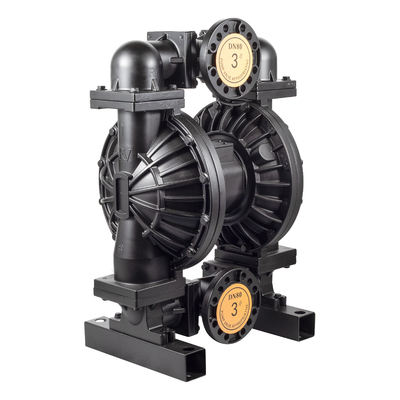

3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment

3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment

Gambar besar :  3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: RV
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $860.40
Kontak

3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment

Deskripsi
Tekanan maksimal: 120psi (0,84mpa, 8.4bar) Aliran Maks: 270gpm (1022lpm)
Kecepatan Maksimal: 135 cpm Tinggi hisap maksimal: 5m
Biji-bijian Maksimum yang Diizinkan: 0.37in. (9.4mm) Konsumsi Udara Maks: 90L/dtk
Ukuran saluran masuk udara: 3/4in Ukuran lubang udara: 1 masuk
Ukuran saluran masuk cairan: 3 Di Ukuran outlet cairan: 3 Di
Berat: 100kgs Badan Pompa: Besi ulet
Diafragma: Ptfe Bahan: Besi ulet
Sumber Daya: Pneumatik
Menyoroti:

3 inch AODD pump for wastewater

,

air operated diaphragm pump 120psi

,

high pressure AODD pump wastewater

High-Pressure 3 Inch Air Operated Diaphragm Pump Alloy Material for Wastewater Treatment Irrigation Agriculture Diesel Liquid
Product Specifications
Max Working Pressure 120 psi (0.84Mpa, 8.4bar)
Max Flow Rate 270gpm (1022Lpm)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37in. (9.4mm)
Max Air Consumption 90L/S
Air Inlet Size 3/4in
Air Outlet Size 1 in
Fluid Inlet Size 3 in
Fluid Outlet Size 3 in
Weight Aluminum 99.5kg
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 0 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 1
Product Attributes
Warranty 1 year
Customized Support OEM, ODM
Application Other
Power Source Pneumatic
Pressure Low Pressure
Structure Diaphragm Pump
Material Ductile Iron
Name AODD Pump
Color Black
Weight 100kgs
Diaphragm PTFE
Brand RV
Packing Carton
Max Pressure 120psi (0.84Mpa, 8.4bar)
Pump Body Ductile Iron
Max Flow 270gpm (1022lpm)
Our Advantages
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 2 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 3
Packing & Delivery
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 4 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 5 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 6 3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 7
Company Profile
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 8

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years. We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and other certifications.

Our Service
3 Inch AODD Pump 120psi Max Pressure for Wastewater Treatment 9
  • All enquiries will be replied within 24 working hours
  • Professional pump producer with dedicated design team
  • All goods packed with standard export wooden case (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depend on the quantity. Generally speaking, 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & Pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
