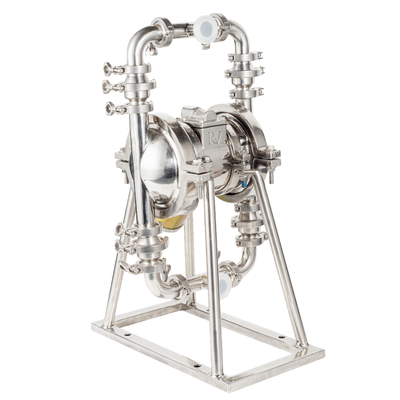

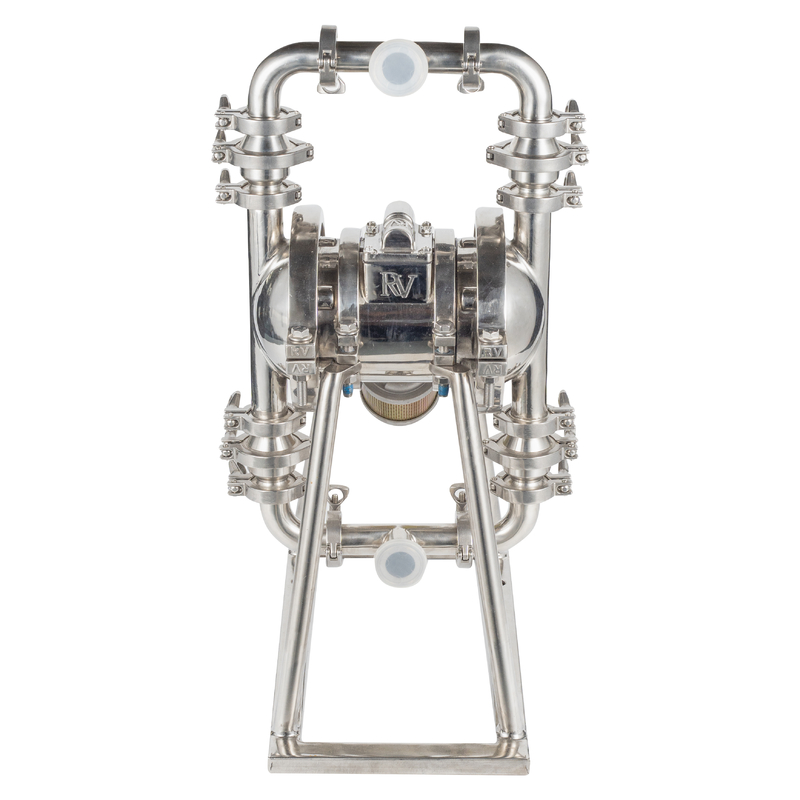

Pneumatic Vacuum Air Diaphragm Pump for Inflatable Massage Chair for Wastewater Treatment Irrigation & Agriculture Applications
Specifications
| Max Working Pressure |
120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate |
40gpm (150lpm) |
| Max Reciprocating Speed |
276cpm |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.16 in (4mm) |
| Max Air Consumption |
45scfm (22.5L/S) |
| Air Inlet Size |
1/2in |
| Air Outlet Size |
3/4in |
| Fluid Inlet Size |
1in |
| Fluid Outlet Size |
1in |
| Weight |
34KGS |
Our Advantages
Packing & Delivery
Company Profile
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and more.
Our pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and more.
We mainly provide services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry. We have established long term business relationships with famous enterprises such as BASF, Bayer, SAMSUNG. Our RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.
Available Materials and Configurations
- Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
- Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
- Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
- Connection types:
- Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps
- Flanged connection: Plastic pumps from 1/2" to 3"
Our Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depends on the quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & Pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
