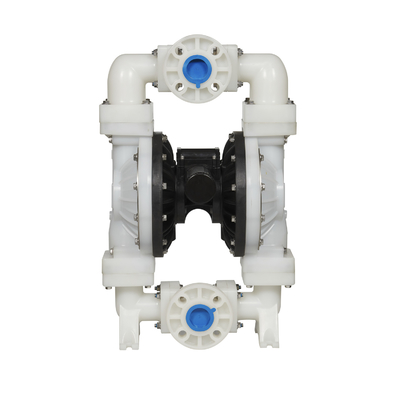

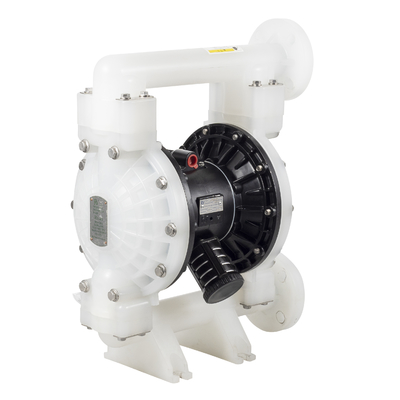

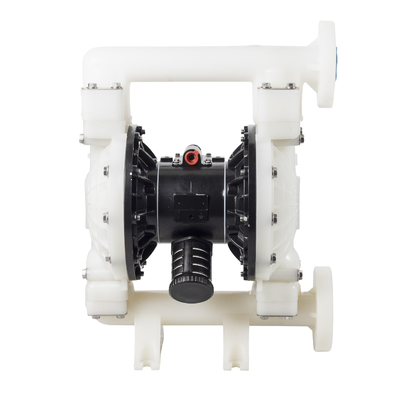

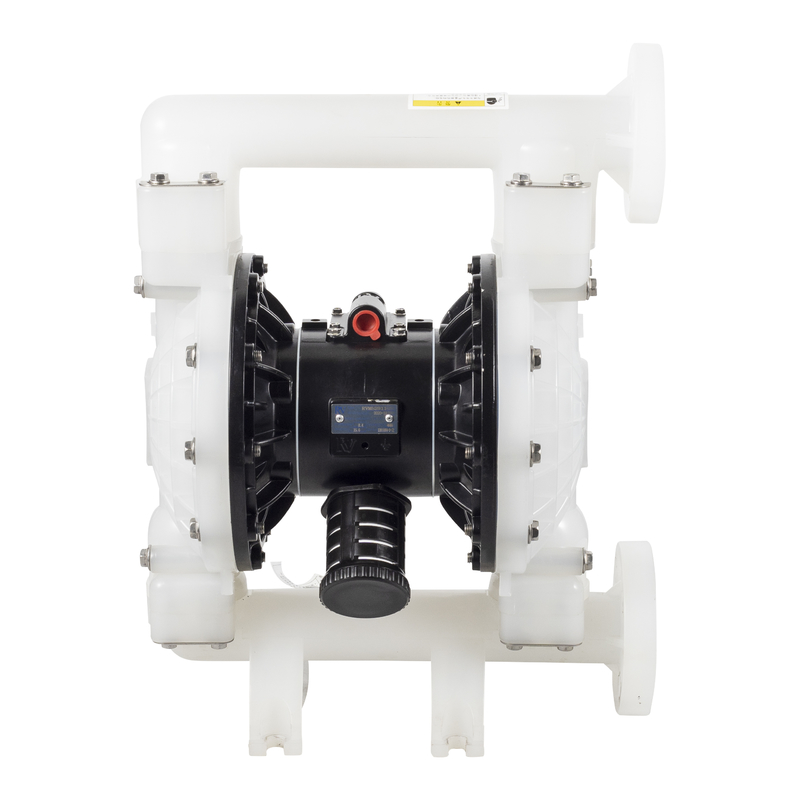

RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use

RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use

Gambar besar :  RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use

Detail produk:
Tempat asal: Shanghai, Cina
Nama merek: RV
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2
Harga: $528
Kontak

RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use

Deskripsi
Bahan: Pp Bahan diafragma: Ptfe
Tekanan maksimal: 120psi (0,84mpa, 8.4bar) Aliran Maks: 90gpm (340lpm)
Kecepatan Max: 200cpm Tinggi hisap maksimal: 5m
Ukuran butir maksimal: 0.2in (5mm) Konsumsi Udara Maks: 80scfm (40l/s)
Ukuran saluran masuk udara: 1/2 Ukuran lubang udara: 3/4 in
Ukuran saluran masuk cairan: 11/2in Ukuran outlet cairan: 11/2in
Berat: 18kg Bahan bodi pompa: Pp
Kecepatan bolak -balik: 320cpm
Menyoroti:

RV PP AODD pump 120psi max pressure

,

industrial air double diaphragm pump 90gpm

,

AODD pump for industrial use

High Quality Pneumatic Double Diaphragm Pump for Industrial Wastewater Irrigation & Drinking Water Treatment
Product Specifications
Attribute Value
Warranty 1 year
Customized Support OEM, ODM
Power Source Pneumatic
Pressure Low Pressure
Structure Diaphragm Pump
Material PP
Name AODD Pump
Diaphragm PTFE
Speed 320cpm
Brand RV
Max Pressure 120psi(0.84Mpa,8.4bar)
Max Flow 90gpm(340lpm)
Technical Specifications
Max Working Pressure
120 psi (0.84Mpa, 8.4bar)
Max Flow Rate
90gpm(340pm)
Max Reciprocating Speed
200cpm
Max Suction Height (Dry Sucking)
5m
Max Permitted Grain
0.2in. (5mm)
Max Air Consumption
80scfm(40L/S)
Air Inlet Size
1/2
Air Outlet Size
3/4 in
Fluid Inlet Size
11/2in
Fluid Outlet Size
11/2in
Weight
PP pump: 18KGS
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 0 RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 1
Our Advantages
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 2
Packing & Delivery
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 3 RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 4 RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 5 RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 6
Company Profile
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 7
Company Introduction

Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years. We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.

The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

We hold necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and more. Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Shanghai Jianglang has established long term business relationship with famous enterprises such as BASF, Bayer, SAMSUNG. Our RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

Material Options
  • Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
  • Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
  • Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection Types
  • Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps
  • Flanged connection: Plastic pumps from 1/2" to 3"
Our Service
RV PP AODD Pump 120psi Max Pressure 90gpm Flow for Industrial Use 8
  • All enquiries will be replied within 24 working hours
  • Professional pump producer with dedicated design team
  • All goods packed with standard export wooden case (non-fumigation)
  • Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depend on the quantity. Generally speaking, 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & Pallet.
Q: How are the products delivered to us?
A: By International express or Sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
